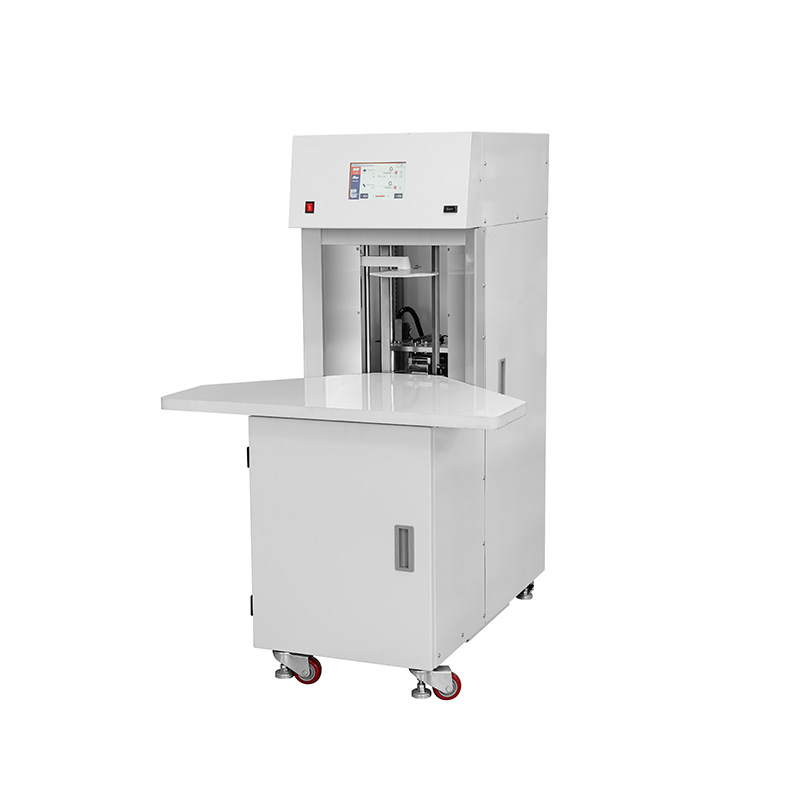

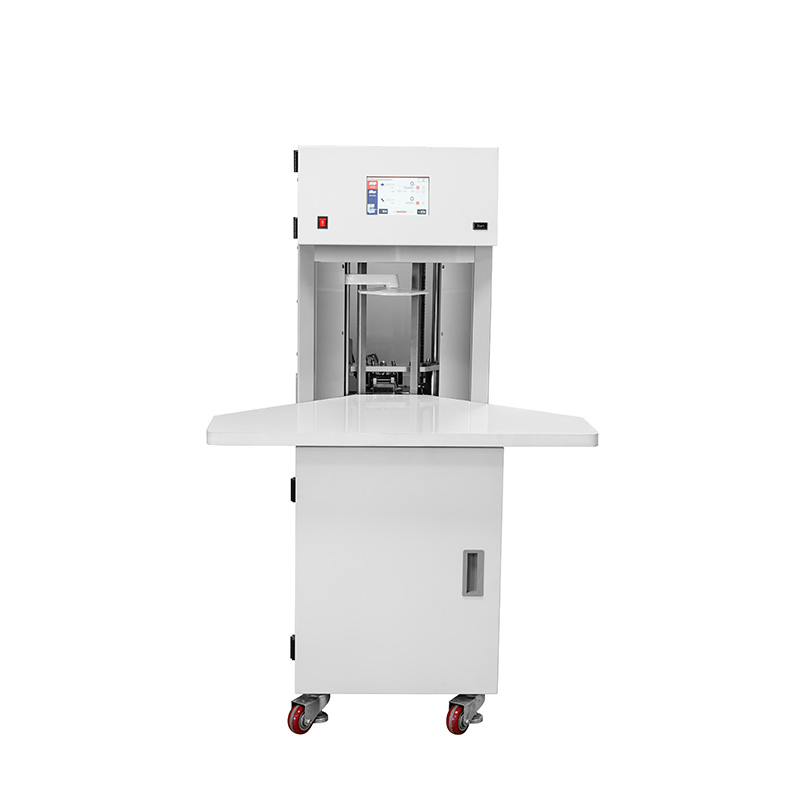

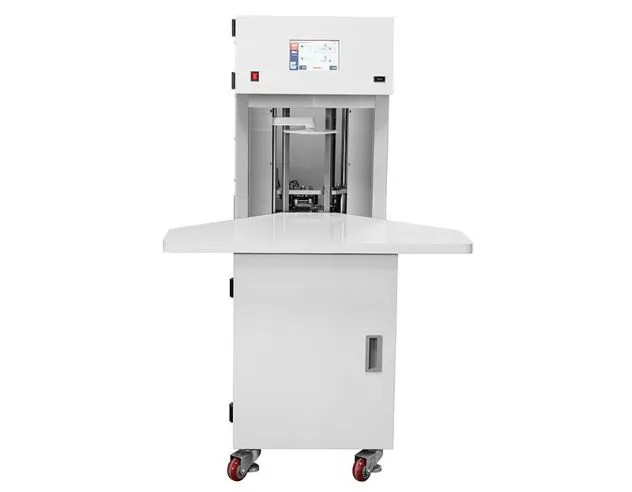

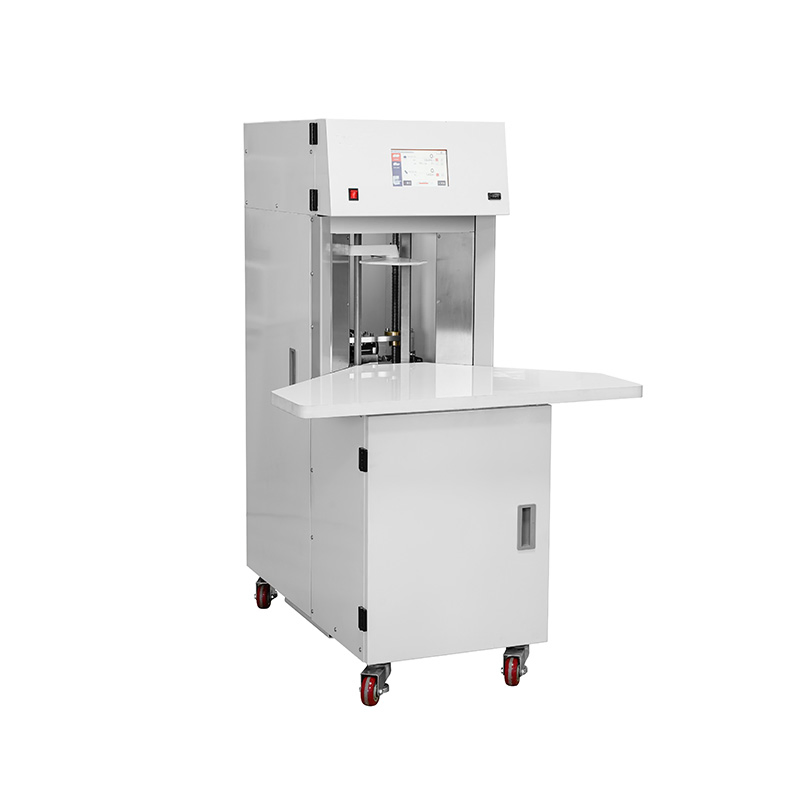

The paper counting machine is a high-tech product we committed to develop, with superior performance. It features a 7-inch color screen computer and servo motor control. The paper of 30-210gsm can be counted accurately and at high speed.

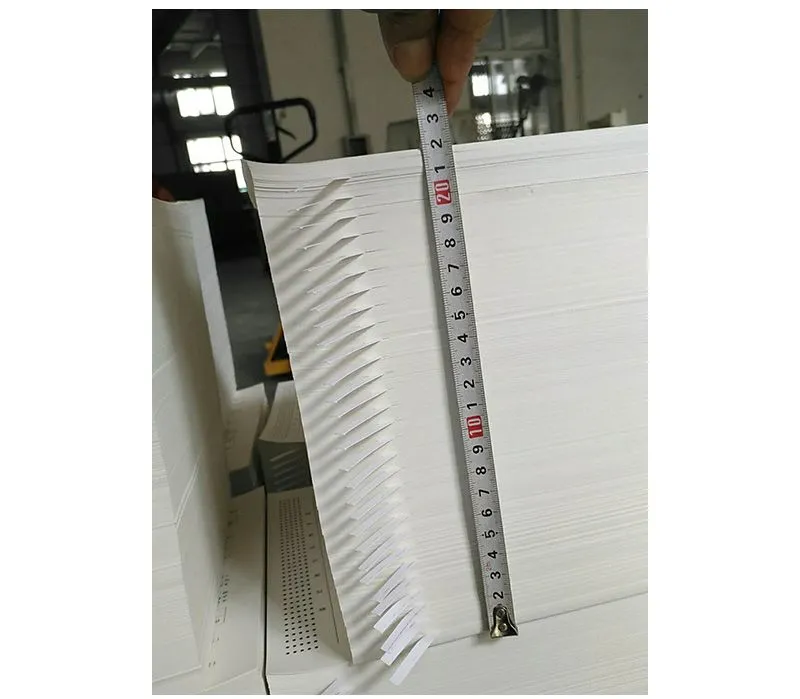

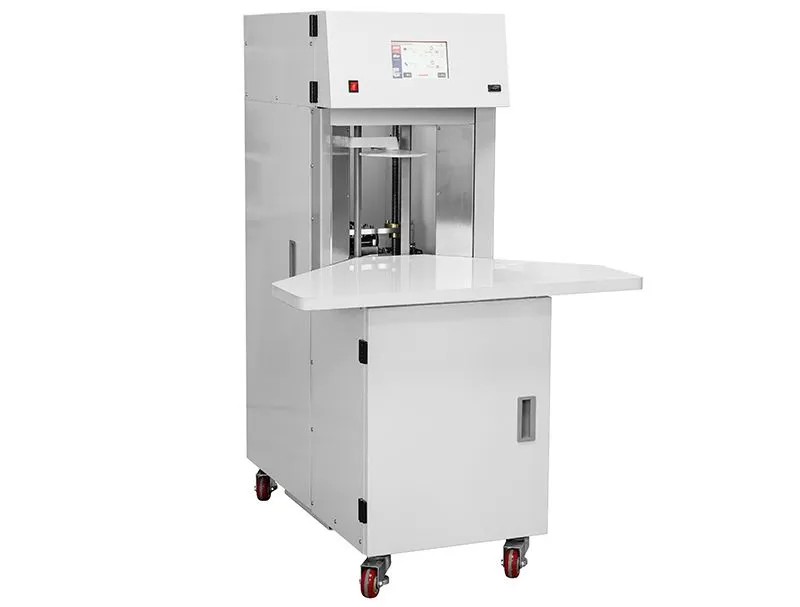

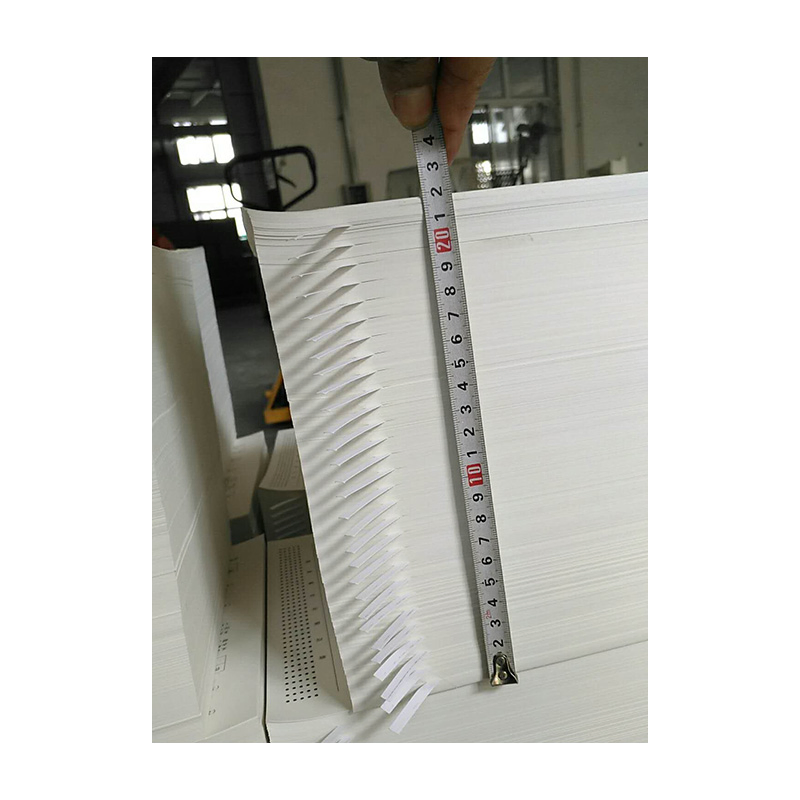

The paper counting machine is rich in features to meet different user needs. In addition to standard counting mode, it includes a random paper label insert function to mark specific quantities.

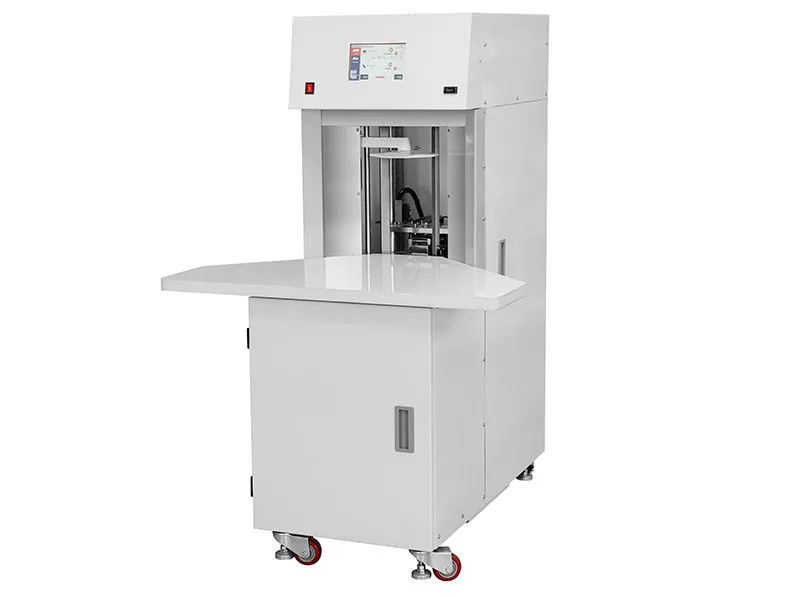

Auto-diagnostic function: The operator receives clear error messages on the platform to identify if a fault is due to operating mistakes or machine conditions.

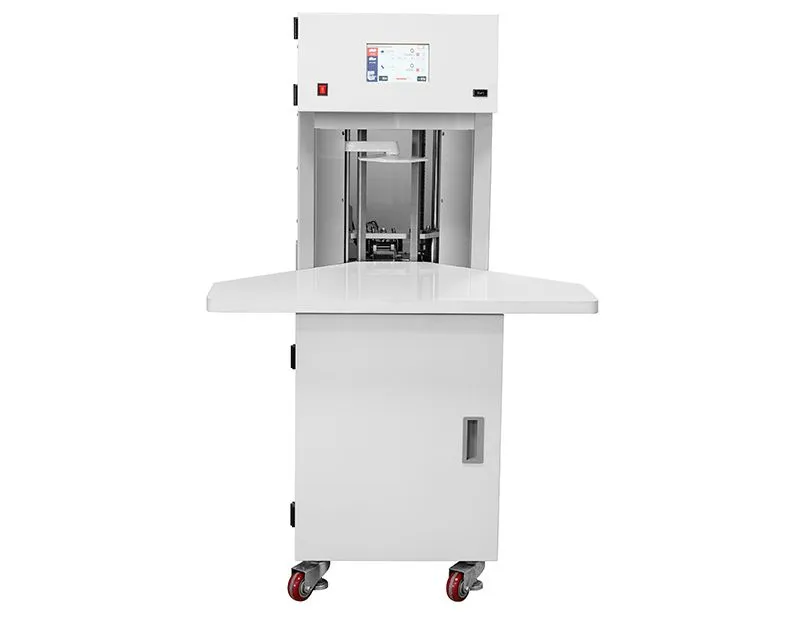

Quantity detection function: Checks whether the predetermined number and actual number match accurately.
The specified number counting function is for sorting out the required number of paper from a pile, featuring a fast label-changing structure.
| Mode | SZJ-1 |
|---|---|
| Paper Thickness Range | 30 ~ 210GSM (Carbon paper, offset printing paper, coated paper, etc.) |
| Paper Size | Min. 100x150mm - Max. 600x600mm |
| Paper Stacking Height | 300mm (Max) |
| Power Supply/Voltage | AC220±10V, 50Hz |
| Motor | 0.4KW |
| Machine Size | 900(W) x 1080(L) x 1500(H) mm |
| Machine Weight | 230kg |
| Label for Paper in Pile | Width 6mm, Length 100m |
| Consumed Power | 600W |
| NO. | Name | Brand | Origin |
|---|---|---|---|
| 1 | CPU | America ARM Core CPU (400MHZ) | USA |
| 2 | SDRAM | Samsung DDR2, 64MB | Korea |
| 3 | Flash Rom | Samsung 64MB | Korea |
| 5 | TFT | Foxconn 5.6 Inch | Taiwan, China |
| 6 | Paper Count Motor | Weichuang Servo Motor | China |
| 8 | Infrared Sensor | Omron | Japan |
| 10 | Switch Power | Taiwan Meanwell | Taiwan, China |
| 11 | Cable | America TE | USA |
