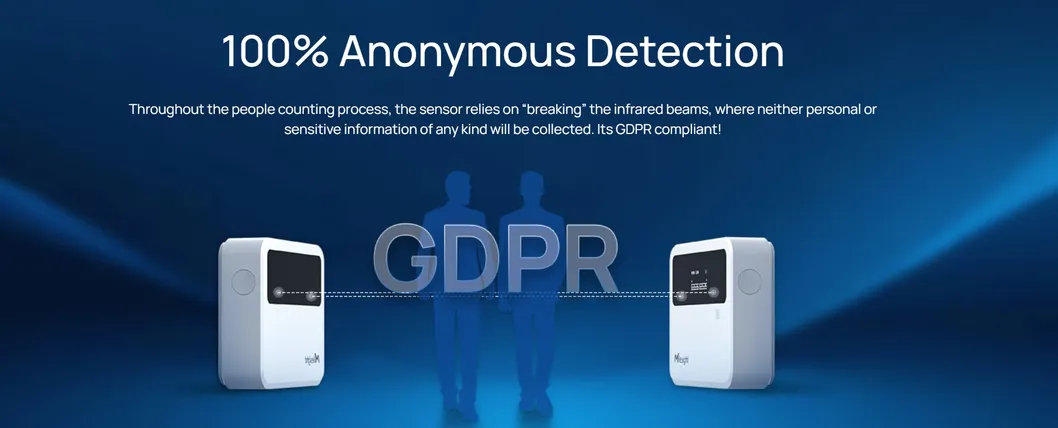

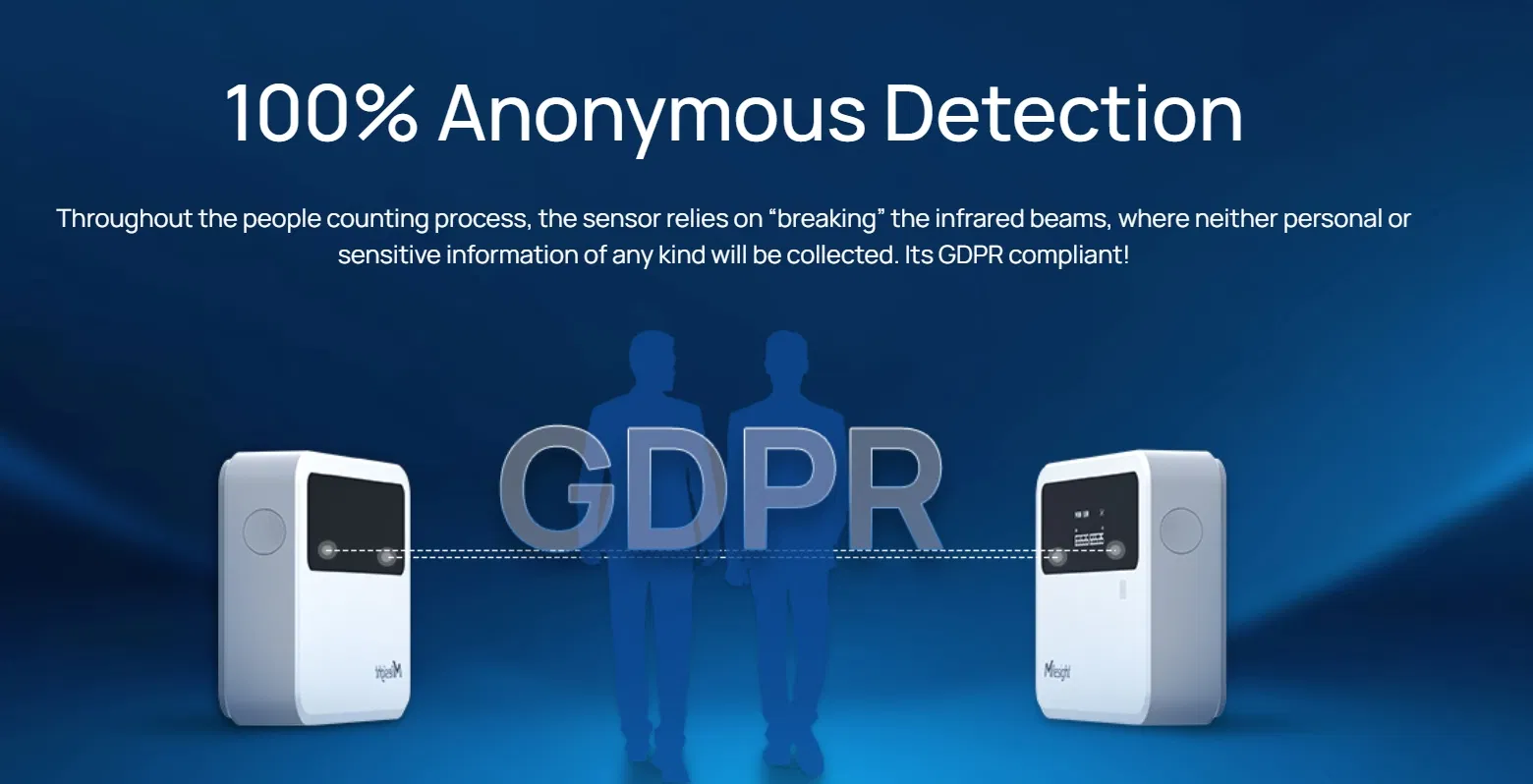

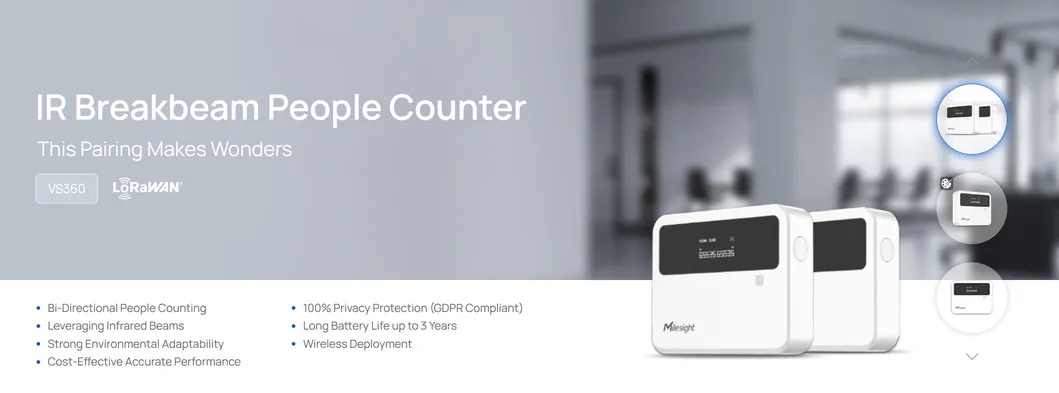

The VS360 IR People Counting Sensor is an advanced solution based on IR Breakbeam technology. Utilizing a dual-device system, it detects targets when they block the infrared beam. This principle ensures the counting is independent of ambient temperature or clothing color, offering exceptional adaptability in various environments.
| Basic Information | |
|---|---|
| Model | VS360 IR People Counting |
| Technology | IR Breakbeam |
| Installation Height | 0.7m ~ 1.2m |
| Detection Range | 1.2m ~ 3m |

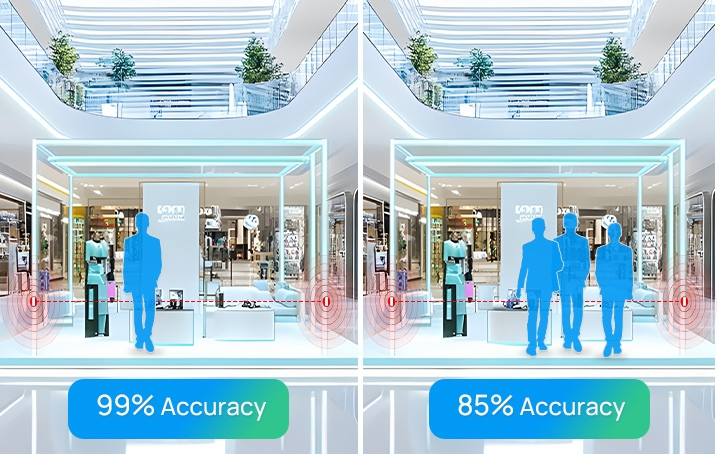

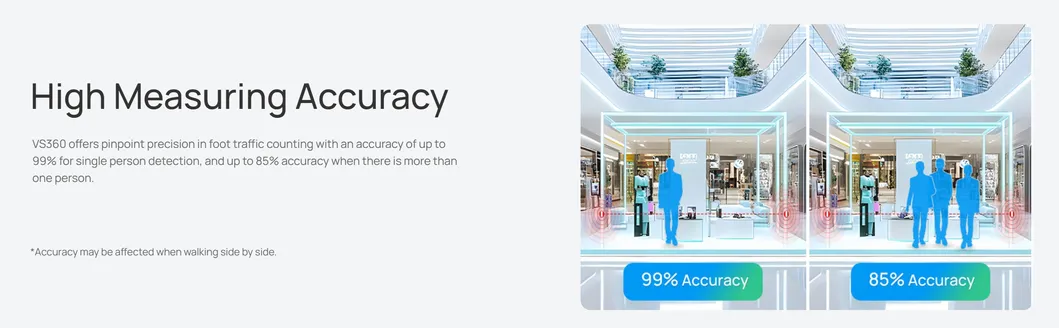

| Detection Rate | Up to 80% (Single Person: up to 99%) |
| IP Rating | IP30 |

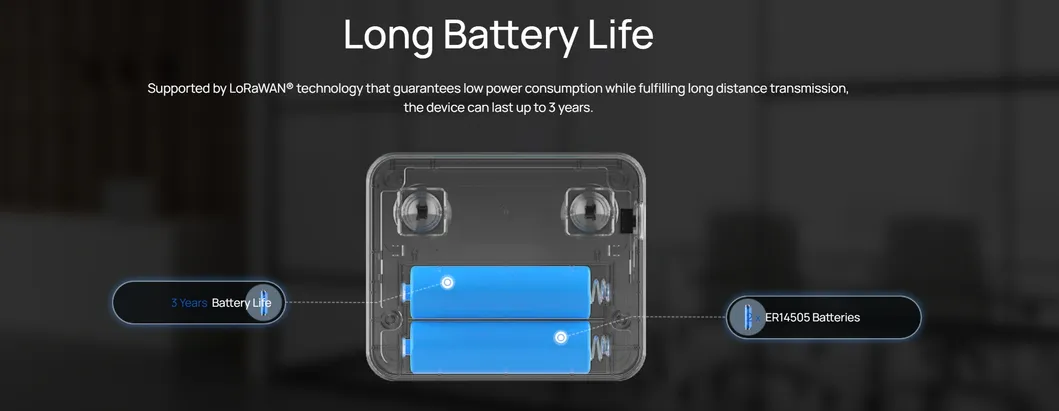

| Power Supply | 2 X 2700 mAh Er14505 Li-Socl2 Replaceable Batteries |
| Battery Life | Around 3-4 Years depending on traffic mode |
| Operating Temperature | -20°C ~ 50°C |
| Material & Color | PC (Flame Retardant), White |
| Dimensions | 76 x 62 x 20 mm |
Bi-directional Counting: Supports tracking of people entering and exiting simultaneously for accurate occupancy data.

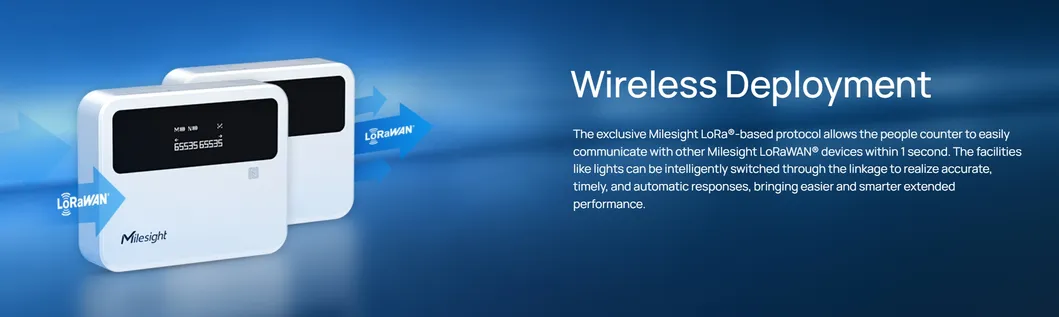

Wireless Connectivity: Utilizes LoRaWAN® and D2D protocols for seamless integration into smart building ecosystems.
Low Power Consumption: Optimized node device current and hibernate modes extend battery life significantly.
Easy Configuration: Simplifies deployment via NFC configuration through a mobile application.

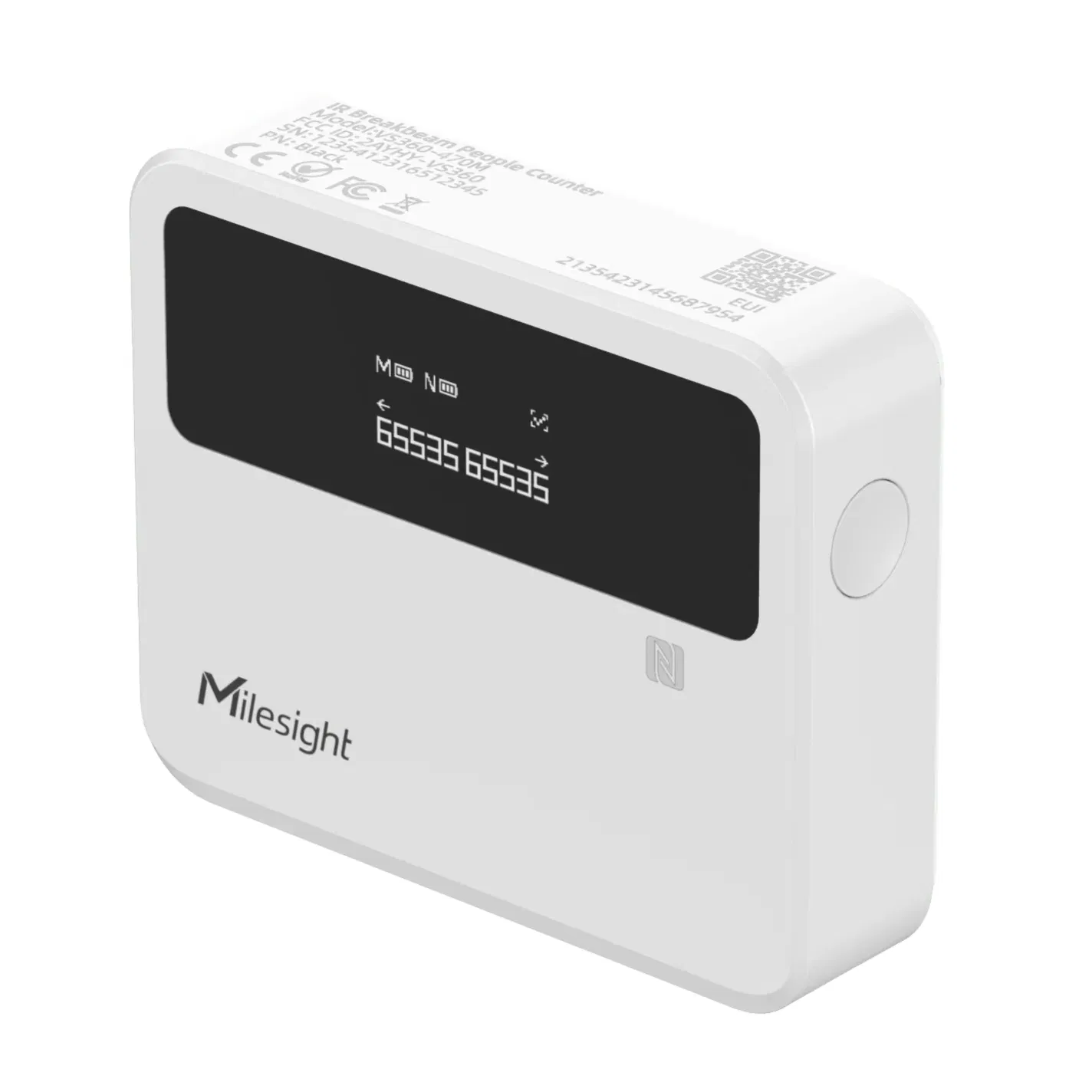

OLED Display: The master device features a clear screen for real-time status and configuration checks.

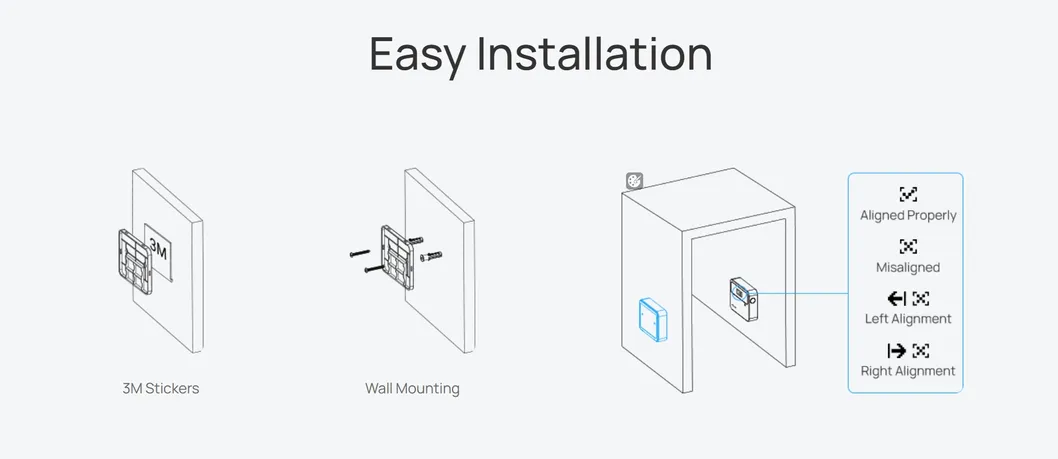

The VS360 is designed for simple, non-invasive installation. It can be wall-mounted using the provided 3M high-strength adhesive tape or secured with screws for a more permanent setup.
